Undercut press VICENTINI mod. PS 220 SG/SM

Sold

Undercut press VICENTINI mod. PS 220 SG/SM

Location:Isola Vicentina, Italy

Description

Art 6010 N° 01 Undercut press VICENTINI mod. PS 220 SG/SM


- Second hand machine

- Equipped with rear hard safety metal shields

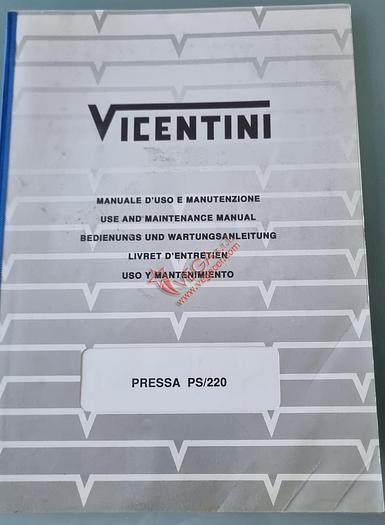

- Complete with manual

- Max. dimensions of unfired objects: ø 250 x h 220 mm

- Max. dimensions of unfired plates: ø 320 x h 40 mm

- Max. dimensions of plaster for PS/220 SG: ø 320 x h 260 mm

- Pressing stroke (adjustable): 450-600 mm

- Stroke of undercut (adjustable): 0-57 mm

- Rotating spindle ( female ) speed: from 265 to 430 rpm

- Spindle motor power: 2,6 Kw

- Rotating caliber ( male ) speed: from 190 to 1000 rpm

- Caliber ( male ) motor power: 1,5 Kw

- Vacuum pump power: 0,55 Kw

- Down stroke speed: 13 m/min.

- Ascent speed: 9 m/min.

- Hydraulic station motor power: 4 Kw

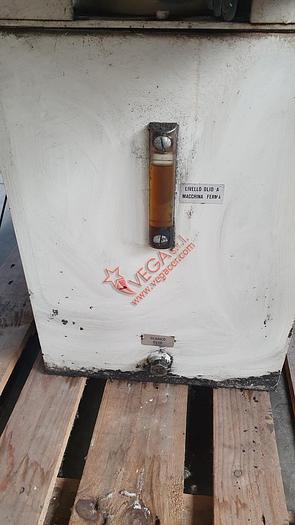

- Oil tank capacity: 100 lt

- Total involved power: 9,15 Kw

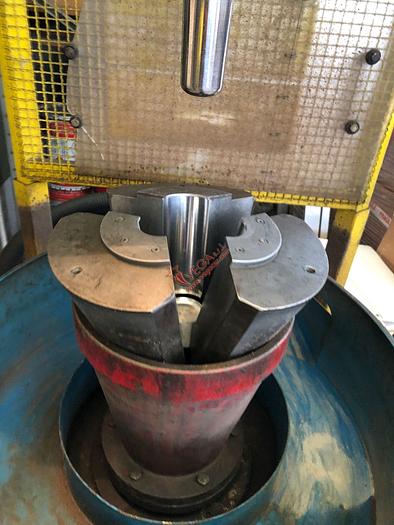

- Complete with mould holder bell ø 275 x h 290 (internal useful) (installed on the machine) + mould holder bell ø 220 x h 210 (internal useful) + reducer for mould holder bell ø 160 x h 210 mm

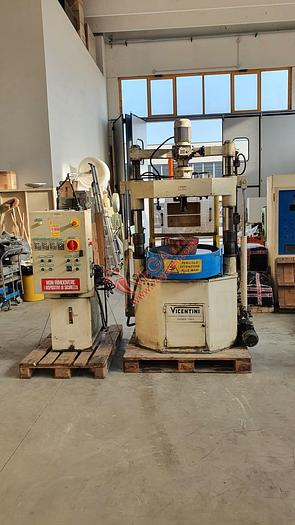

- Overall dimensions press : 1400 x 1250 x h 2100 mm

- Overall dimensions hydraulic power pack :600 x 1000 x h 1400 mm

- Total Weight: 1100 kg approx.

Specifications

ManufacturerVICENTINI
ModelPS 220 SG/SM
ConditionUsed
Stock Number6010
