Glaze fast stirrer
Glaze fast stirrer
Location:Isola Vicentina, Italy
Description

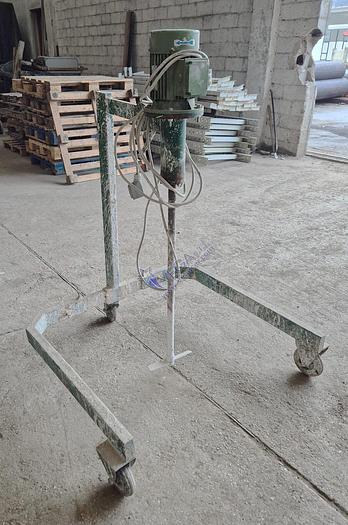

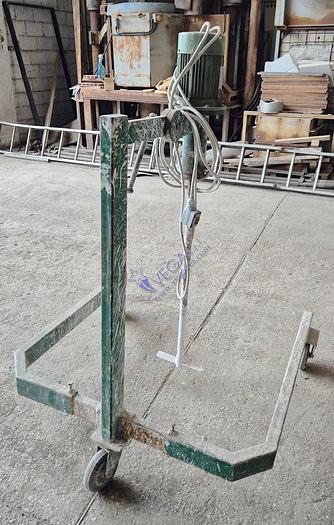

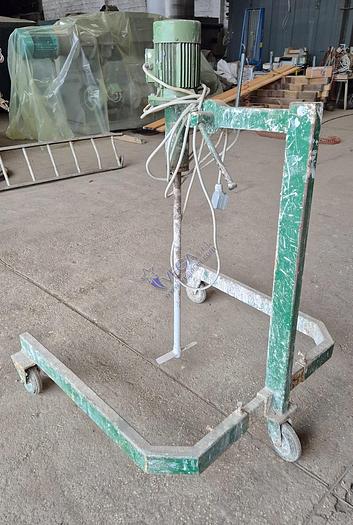

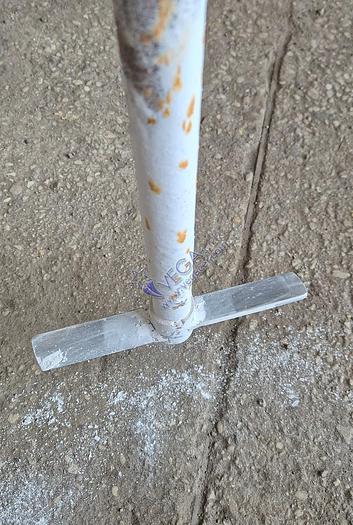

This glaze fast stirrer is a reliable used machine built for effective and consistent glaze mixing in industrial settings. Equipped with a 230 mm stainless steel 2-blade propeller and an 850 mm iron shaft, this stirrer ensures optimal mixing performance. The shaft is designed to tilt, allowing for convenient adjustment and accessibility during operation.

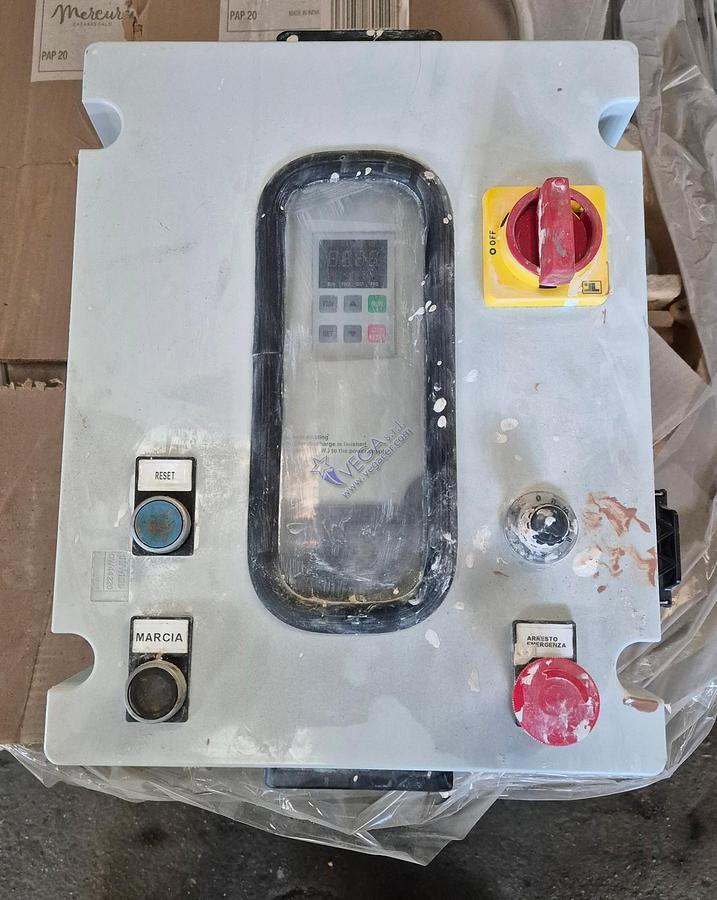

While it does not feature a lifting system, the stirrer includes an inverter-based system to reduce the propeller speed as needed, enhancing control over the mixing process. The legs provide a maximum opening of 950 mm, accommodating various container sizes, and the base is mounted on wheels, allowing for easy relocation across the production floor.
With a power rating of 0,55 kW, three-phase 400 Volt / 50 Hz electrical input, and compact dimensions of 1120 mm (width) x 1200 mm (length) x 1400 mm (height), this glaze fast stirrer offers both functionality and mobility. It is an ideal choice for facilities looking for efficient, space-saving solutions in glaze preparation.
Specifications
Condition | Used |
Stock Number | 7022 |
Propeller type | 2 blades propeller |
Propeller material | stainless steel |
Propeller diameter mm | 230 |
Shaft material | iron |
Shaft lenght mm | 850 |
Tiltable shaft | YES |
Lifting system | NO |
Type of system to reduce the propeller speed | inverter |
Maximum opening between legs mm | 950 |
Complete of wheel for moving the glaze fast stirrer | YES |
Power kW | 0,55 |
Tension Volt / Frequency Hz | 400/50 |
Phase | three phases |
Glaze fast stirrer overall dimensions (width) x (lenght) x (height) mm | 1120 x 1200 x 1400 |
