Muffled gas turbo kiln SAFF - Usable also as not muffled turbo kiln

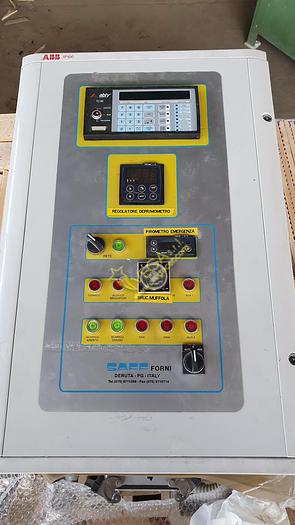

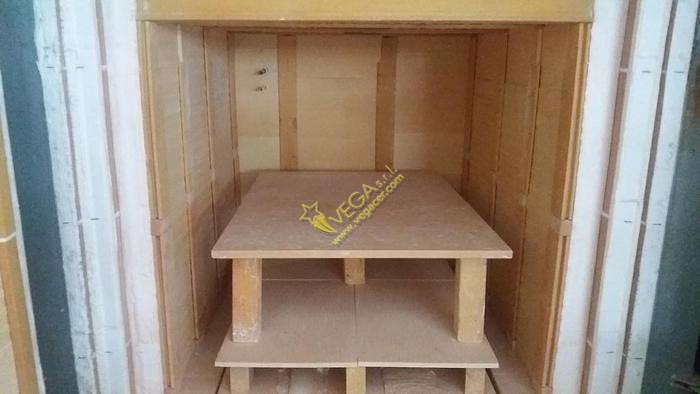

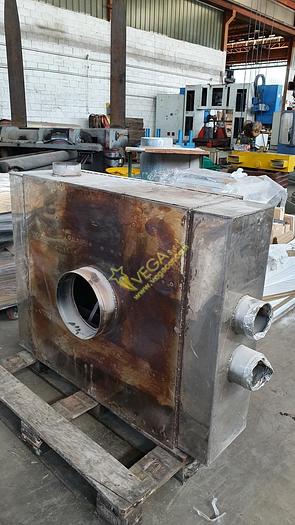

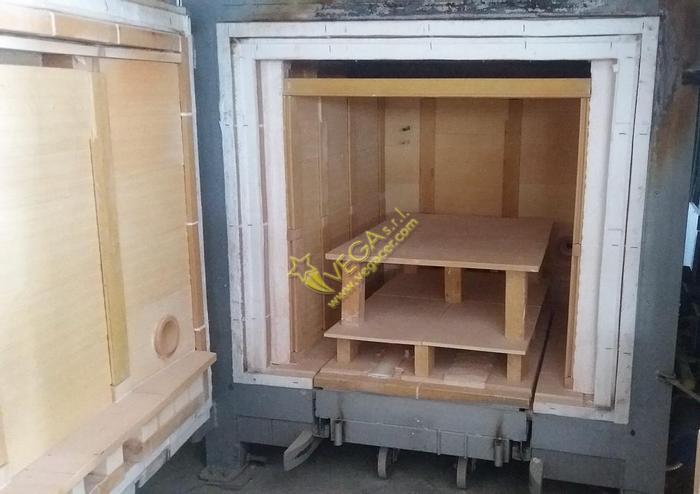

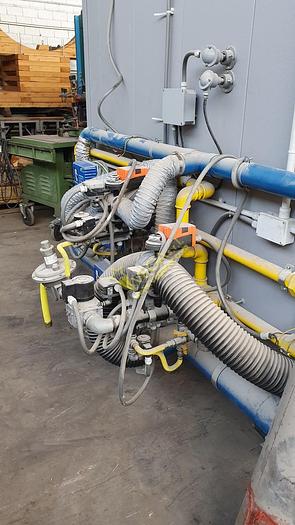

Art. 4345 N ° 01 Muffled gas turbo kiln SAFF - Usable also as not muffled turbo kiln - Second hand machine - Max firing temperature: 1100 ° C - Useful loading capacity: 1 cbm - Intenal insulation: ceramic fiber and thin refractory slabs + muffle done with thin refractory slabs - N ° of cars: 02 (N ° 01 inside + N ° 01 in stand-by) - Useful loading dimensions: 900 x 1300 x h 950 mm - N ° of burners: 10 inside muffle + 2 outside the muffle (can be excluded from the electric switchboard) - Burners feeding: Natural gas (CH4) - Combustion fans: Kw 0,75 for the burners inside the muffle + Kw 0,37 for the burners outside the burners - N ° 02 Completely Independent controlled zones (gas valve + air valve and combustion fan are independents - one zone controls the burners inside the muffle and the other the burners outside the muffle) - Complete with electric switchboard with computer ABLY TC 85 - Automatic chimney opening controlled by the microprocessor (probably, to be verified, with real time controlof the pressure inside the firing chamber) - Stainless steel heat exchanger for the dryer complete with fan 0,75 Kw
